Function

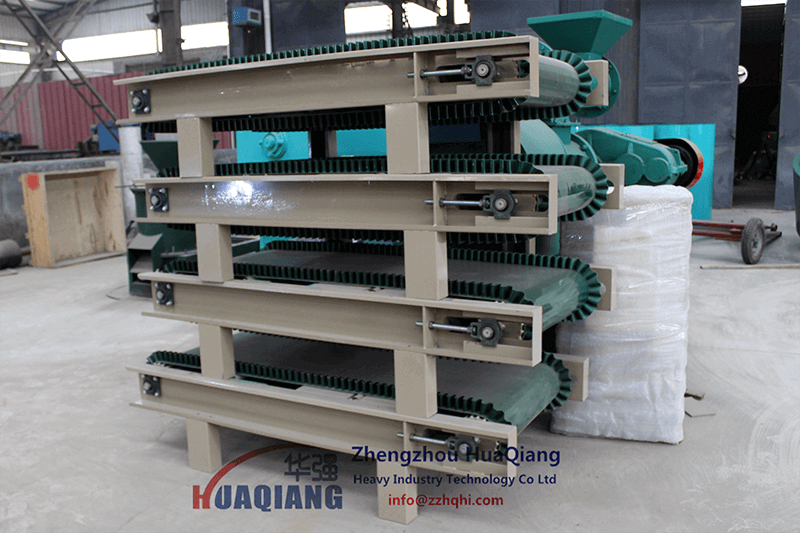

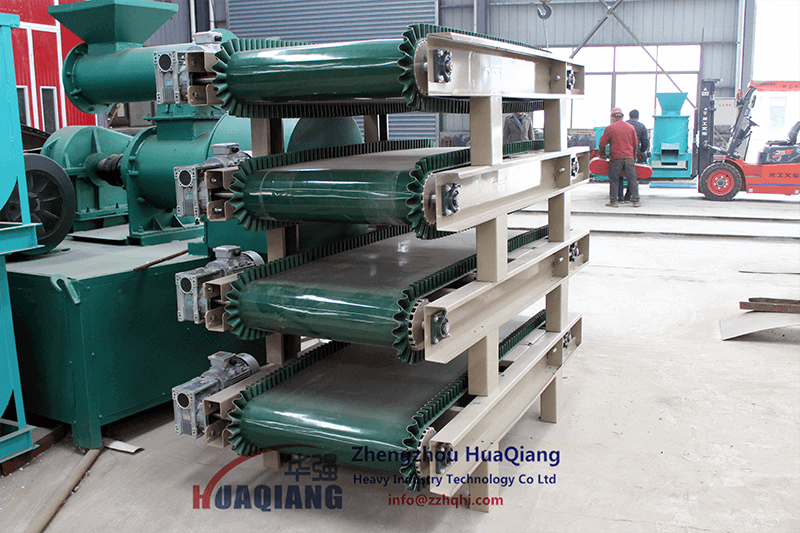

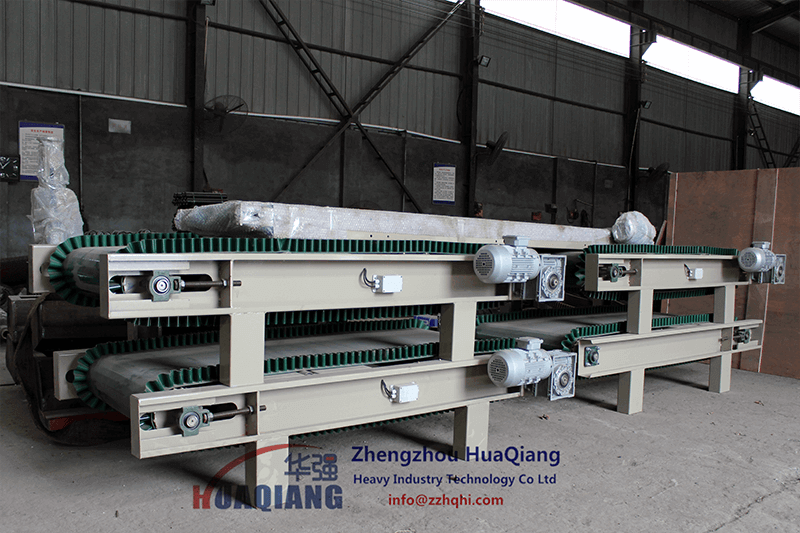

The belt feeder adopts H beam as the main frame, using steel tank as a leg, high strength and high stiffness, good stability.
On both sides of main frame and leg, use belt against deviation switch.
In order to prevent running deviation, driven drum adopts chevron rubber surface which has the faction of preventing off tracking.
Unique skirt hem tape can prevent the material to the overflow, and on the other hand, it can prevent the material accumulating at the head and tail, making the weighing reach its top condition.
Material thickness can be adjusted.
This machine can enhance the accuracy of weighing.
Accuracy
The accuracy of weighing is +0.5%, control accuracy is+1% Specification
| Belt width | Geared Motor's model | Belt line speed | Load sensor | converter rated speed | output | Reference output |
| 650 | SBD65-923-1.1KW | 0.0082 | 50 | 50 | 0.1-1.0 | 0.2-0.8 |
| 650 | SBD66-619-1.1kw | 0.0254 | 50 | 0.4-4.0 | 0.65-3.2 | |
| 800 | SBD67-253-1.5kw | 0.0621 | 100 | 2.0-20 | 4.0-16 | |
| 800 | SBD68-102-1.5kw | 0.1539 | 100 | 4.0-40 | 10-32 | |
| 1000 | SBD69-91-1.5kw | 0.1725 | 100 | 10-100 | 40-80 | |
| 1200 | SBD70-29-1.5kw | 0.2661 | 200 | 16-160 | 80-120 |
