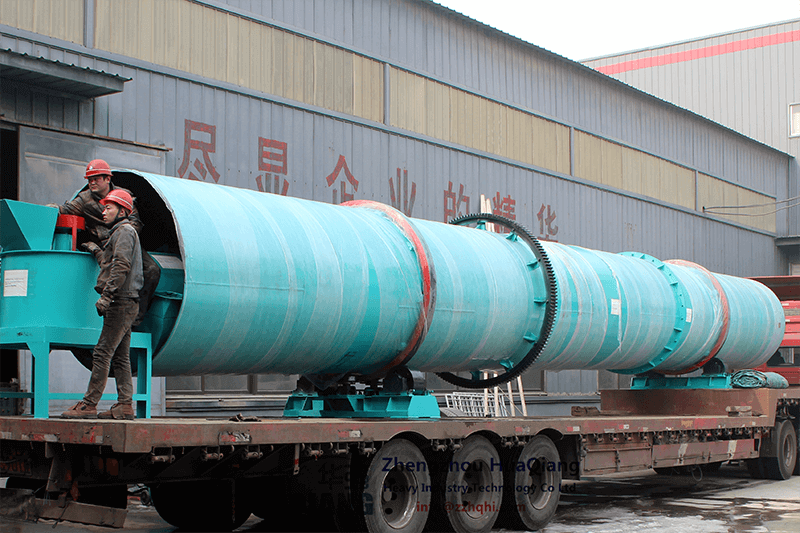

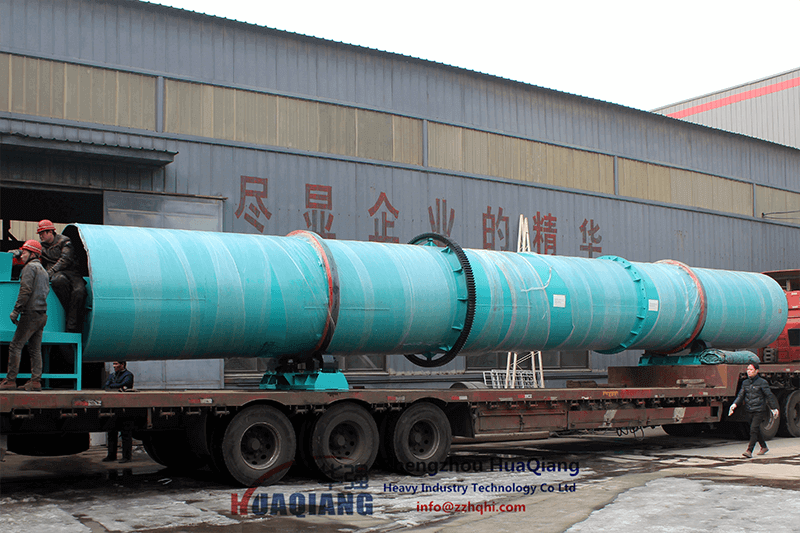

Rotary drum cooler is a new generation of high efficiency cooling machine developed by our staff for many years of compound fertilizer production experience. It is paired with the rotary drum dryer for cooling the fertilizer particles in a certain temperature and particle size during the production process of compound fertilizer. This rotary drum cooler can greatly improve the cooling speed, reduce labor intensity, improve the yield, further to remove part of water and reduces the fertilizer particle temperature. At the same time, it can also be used for the cooling of other powdery and granular materials. The equipment is with compact structure, high cooling efficiency, reliable performance and adaptable to any materials.
Overview
This cooler used for the production of compound fertilizer, cool fertilizer with certain temperature and particle size. Use dryer together can greatly improve the cooling rate, reduce labor intensity and improve the quality, further remove moisture, reduce the grain temperature of fertilizer.
At the same time, which also can be used for cooling powder, other granules materials.
Compact structure, high efficiency, reliable quality, great adaptability are the specification of this equipment.
Specification
| Model | shell | Feed temperature | Discharge temperature | Motor | Decelerators model | |||||
| Inner diameter | length | inclination | Rotation speed | Model | Power | Rotation speed | ||||
| mm | mm | (0) | r/min | °C | °C | Kw | r/min | |||
| LQ10100 | 1000 | 10000 | 2-5 | 4.6 | 60-80 | <40 | Y132m-4 | 7.5 | 1440 | ZQ350 |
| LQ12120 | 1200 | 12000 | 2-5 | 4.6 | 60-80 | <40 | Y132m-4 | 7.5 | 1440 | ZQ350 |
| LQ15120 | 1500 | 12000 | 2-5 | 5 | 60-80 | <40 | Y160L-4 | 15 | 1440 | ZQ400 |
| LQ15150 | 1500 | 15000 | 2-5 | 5 | 60-80 | <40 | Y160L-4 | 15 | 1440 | ZQ500 |
| LQ18160 | 1800 | 16000 | 2-5 | 5 | 60-80 | <40 | Y200 L1-6 | 18.5 | 970 | ZQ500 |
| LQ20200 | 2000 | 20000 | 2-5 | 60-80 | <40 | Y200 L1-6 | 22 | 970 | ZQ650 | |
